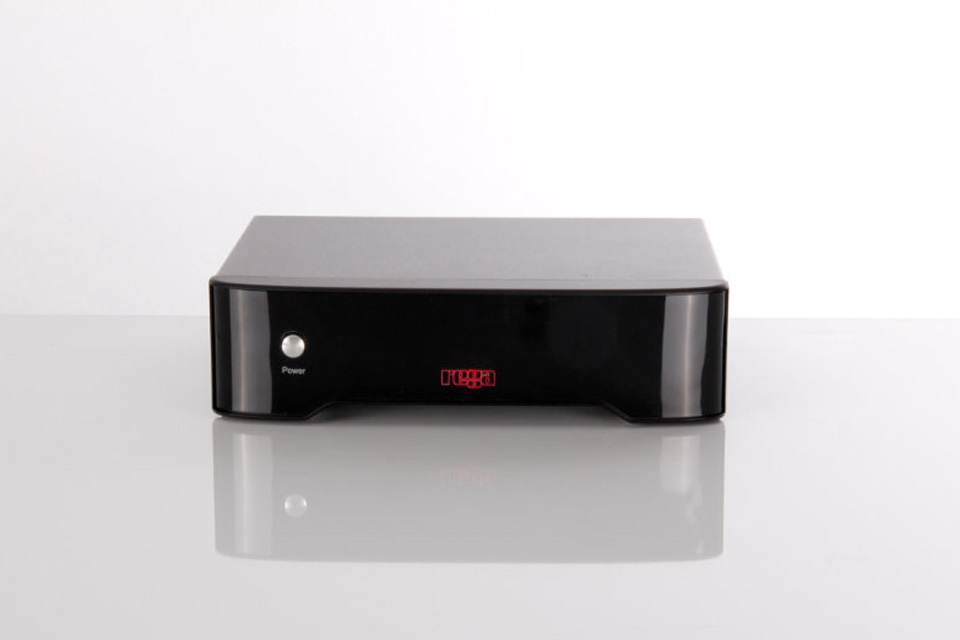

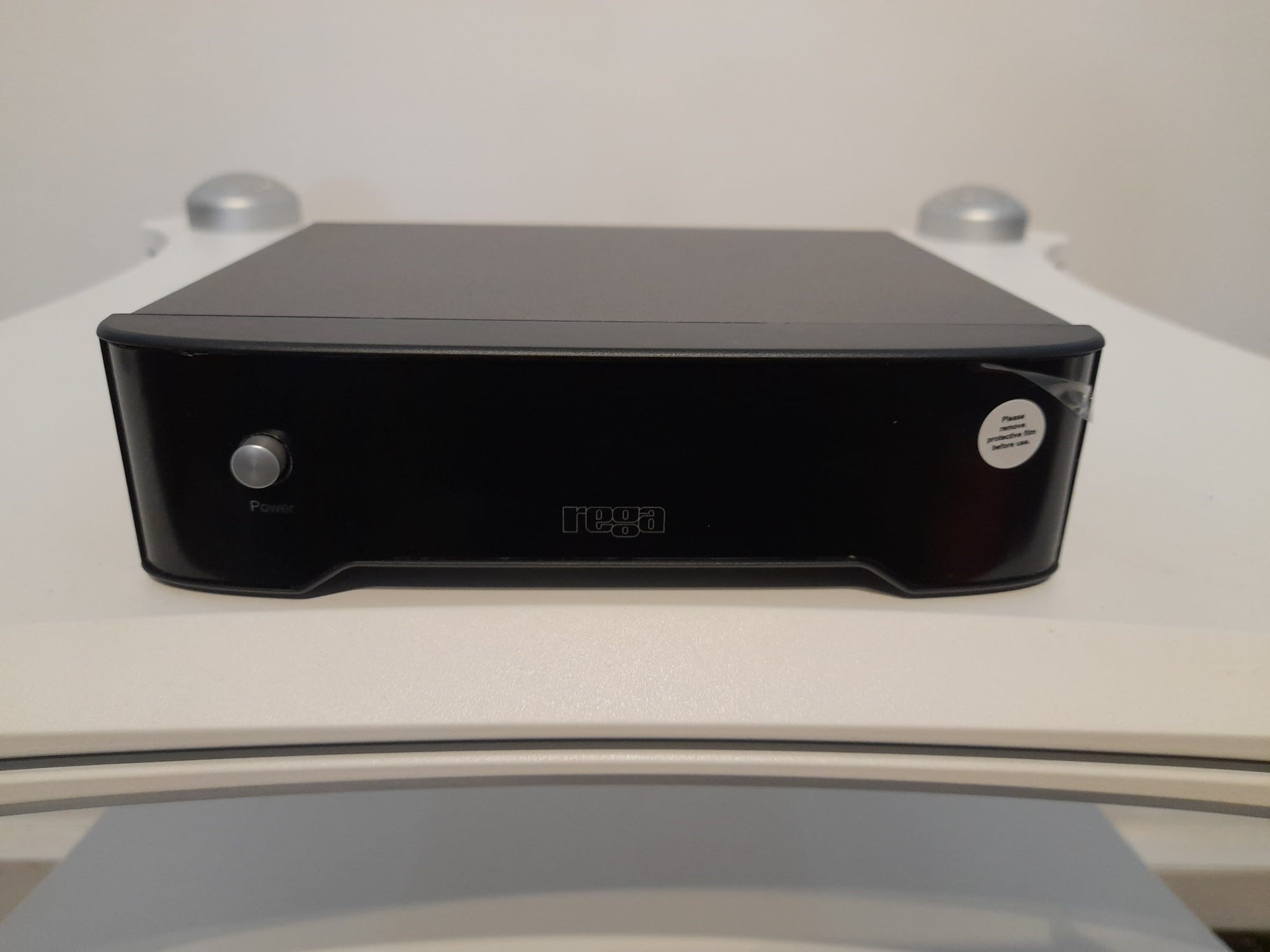

Rega Fono MC MK3

New Boxed Rega Fono MC MK3 – Phonostage

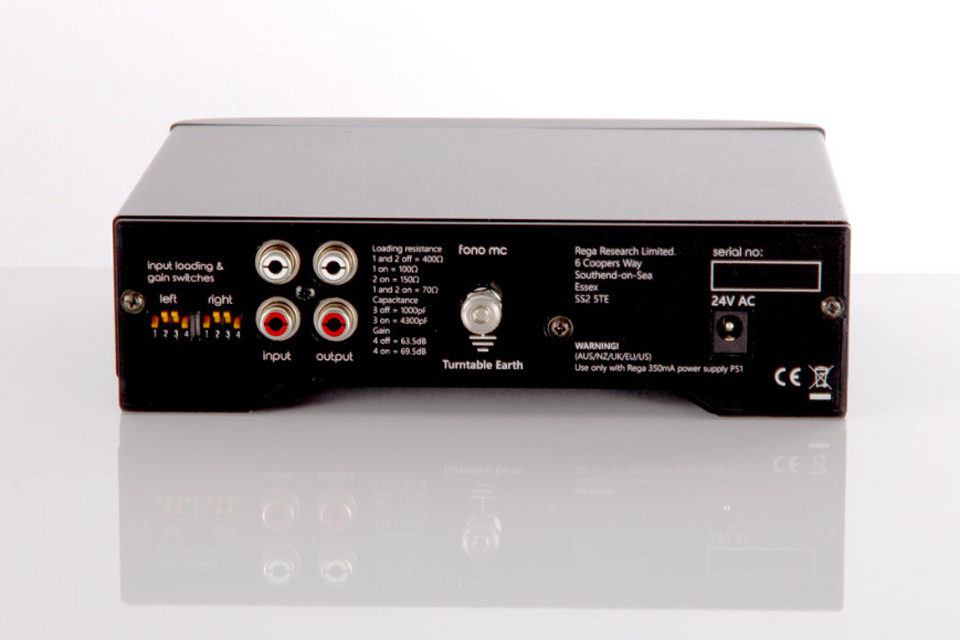

The Fono MC is an exceptionally high quality MC phono stage designed to maximise the potential of any MC cartridge. Although specifically to compliment the latest Rega range of moving coils you will find full adjustability for loading is available via dip switches conveniently placed on the rear panel with two different gain settings located on the back panel making the Fono MC compatible with most low output MC cartridges.

Rega Fono MC Specifikationer:
• Input sensitivity (for 200mV output)
4 off = 133uV
4 on = 67uV
• Input loading resistance
1 and 2 off = 400O
1 on = 100O
2 on = 150O
1 and 2 on = 70O
• Input loading capacitance
3 off = 1000pF
3 on = 4300pF
• Gain (at 1KHz)
4 off = 63.5dB
4 on = 69.5dB
• Maximum input level (at 1KHz)
4 off = 6.7mV
4 on = 3.4mV

• Output impedance = 200 Ohm
• Recommended minimum output load resistance = 5K
• Frequency response (50K Ohm output load) = 13Hz (-3dB) to 100KHz (-0.3dB)
• RIAA accuracy (50K Ohm output load) = Better than +/-0.2dB 100Hz to 100KHz
• Power requirements = 24V AC at 150mA maximum. Only to be used with Rega PS1.
