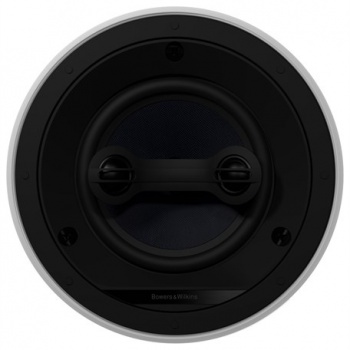

CCM664SR is a dual, two-way ceiling speaker combining two offset tweeters and a twin voice coil bass/midrange driver to allow either for a combined stereo signal from one speaker, or for rear-channel surround sound.

A high-performance, in-ceiling surround speaker that’s ideal for the surround sound channel in a home theatre set-up, or for bringing stereo sound to rooms where space is limited. The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM664SR.


Description Drive Units Frequency Range (-6dB) Recommended Amp Power Sensitivity SPL (2.83V, 1m) Impedance Nominal (min) Frame diameter Cut-out diameter Depth behind surface Protrusion Pre-mount Kit Back Box 2-way dual channel in-ceiling system 2x ø20mm (1in) soft dome tweeter 1x ø150mm (6in) black glassfibre cone bass/midrange 48Hz – 30kHz 25 – 80w (per channel) 82dB (per channel) 88dB (both channels driven) 8Ω (4Ω) (per channel) 240mm (9.5in) 202mm (8in) 133mm (5.2in) 4mm (0.2in) C6 6C
