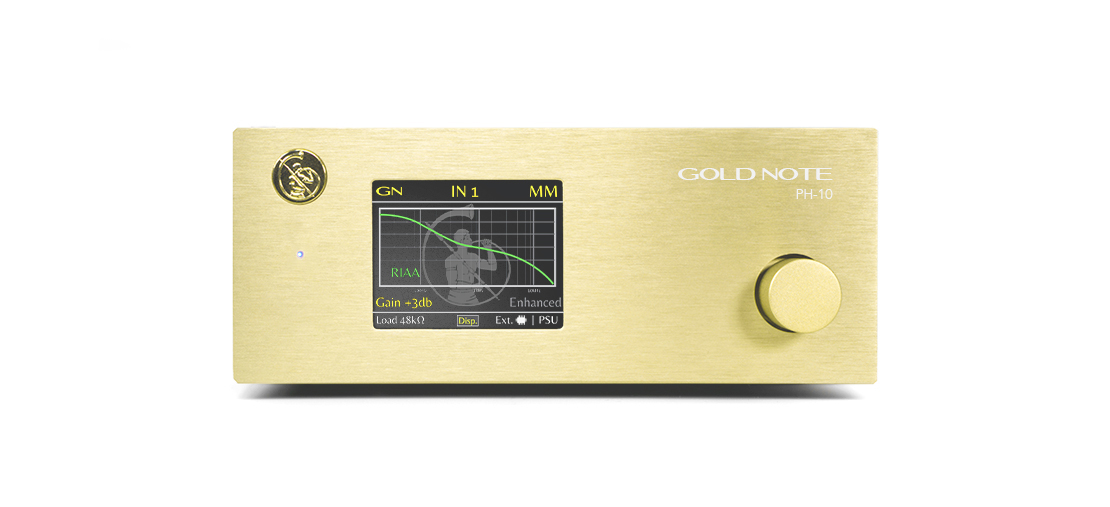

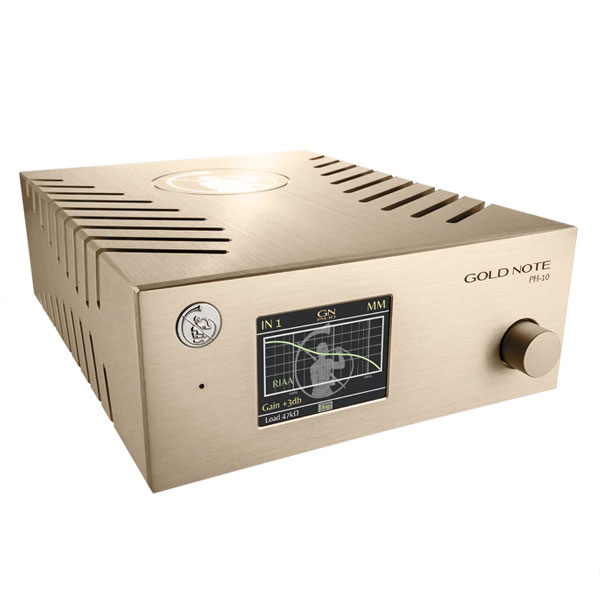

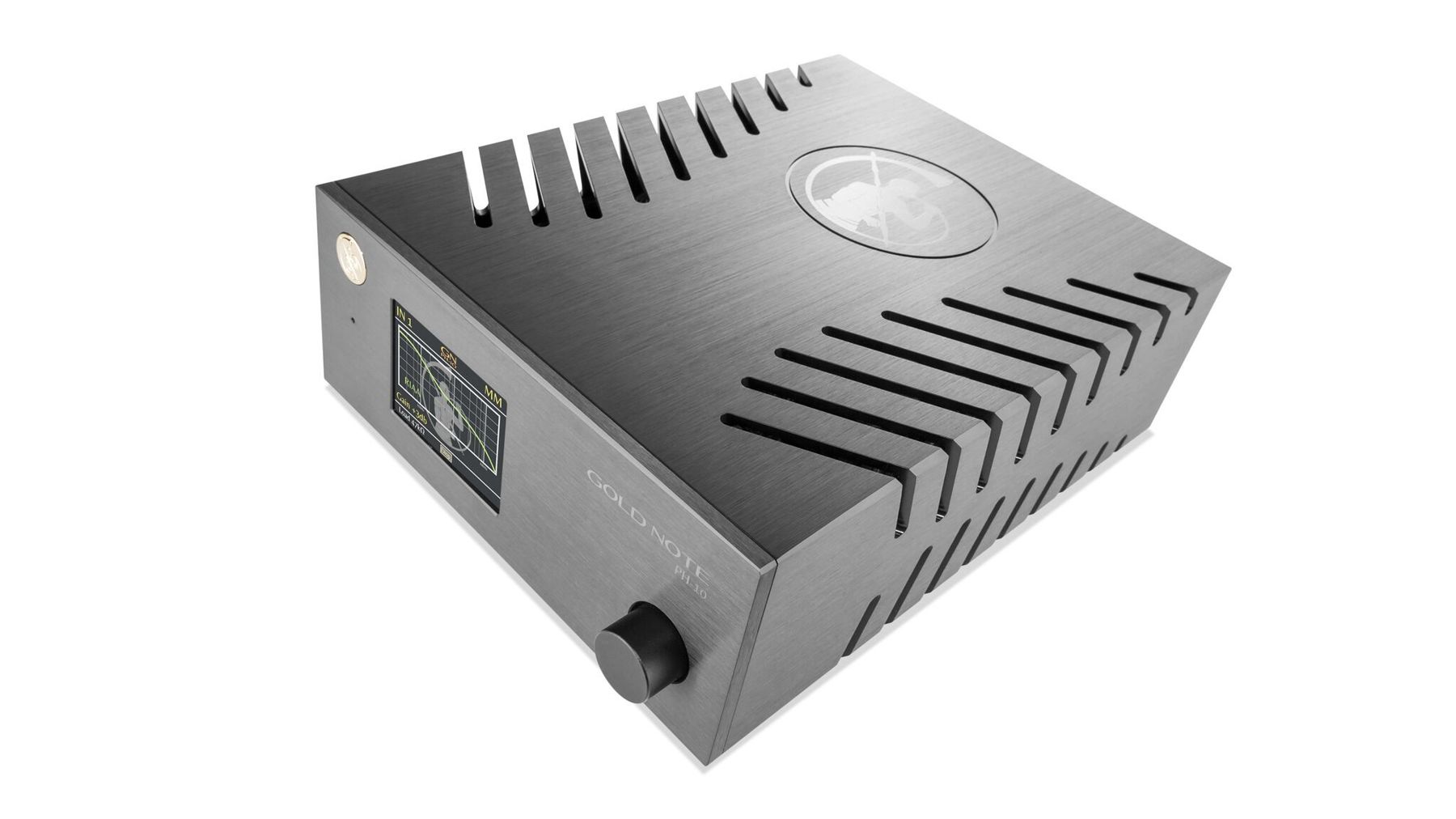

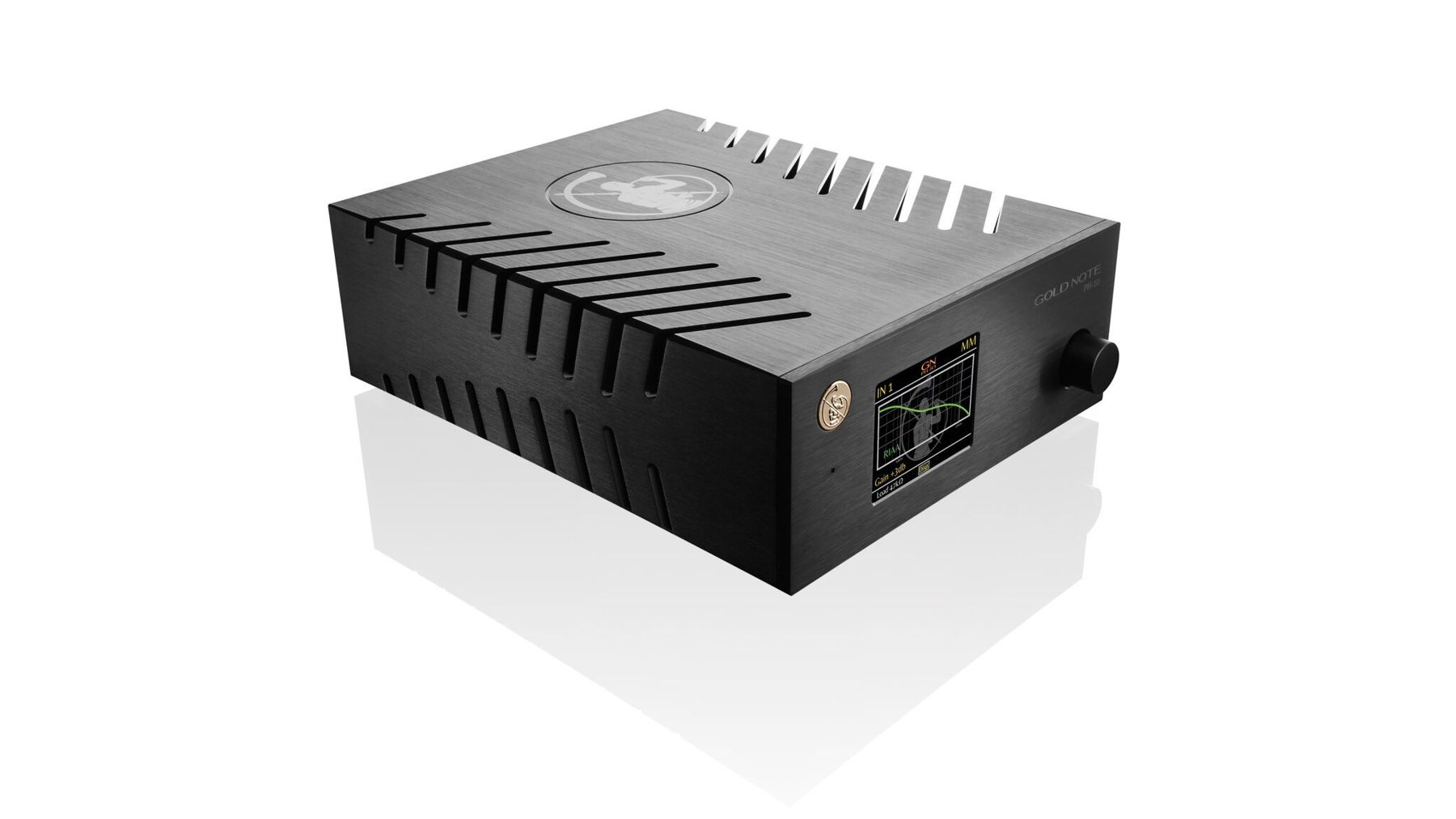

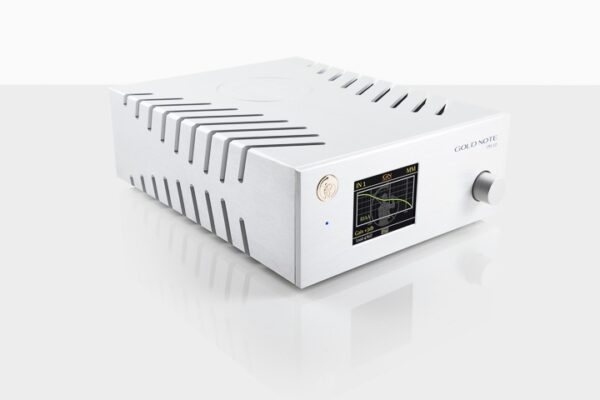

GOLD NOTE PH-10

The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments: a fully analogue design engineered exclusively with the best components to recreate any musical event in the most natural way possible. Being the first amplification stage of the audio chain, the phono stage assumes great importance and this is why the PH-10 offers the very best sound and versatility using the latest technology.

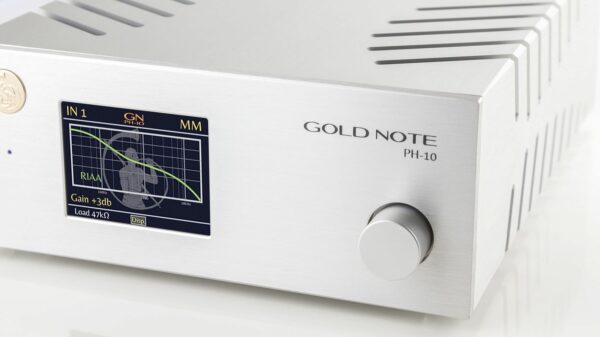

The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA-LONDON or the AMERICAN- CBS-COLUMBIA. All selections appear clearly as a graph on the large display. Each curve is enhanced by a modern Gold Note proprietary design that has been derived from the Neumann master cut machine project for superior dynamic and high-frequency extension.

The perfect cartridge matching is guaranteed with up to 9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] and 4 different selectable GAIN levels [-3dB, 0dB, +3dB, +6dB] that will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.

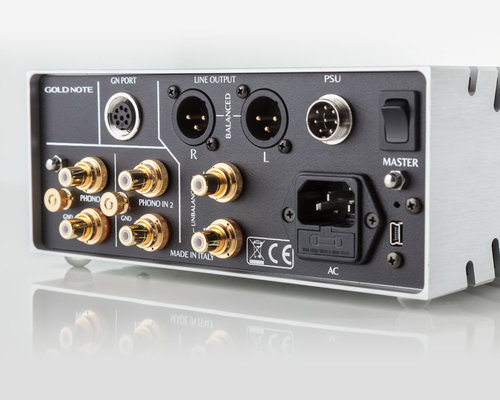

With its two separate RCA inputs, the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off!

To maximise the performance of the PH-10, we also developed the PSU-10, a dedicated external super inductive power supply that allows the PH-10 to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics and greater three dimensional sound.
