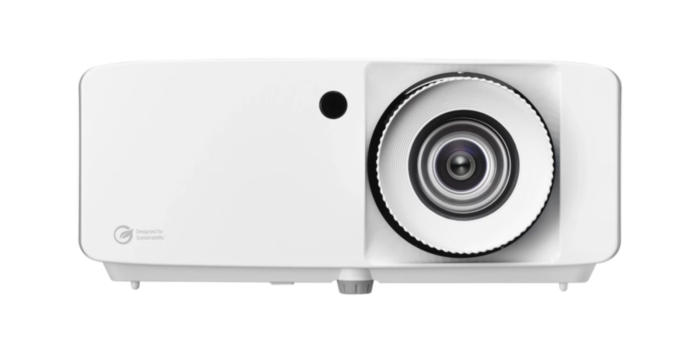

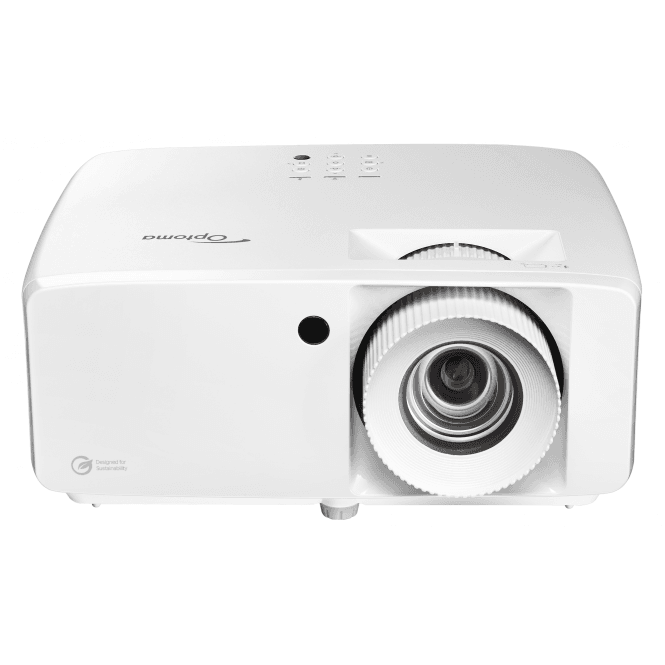

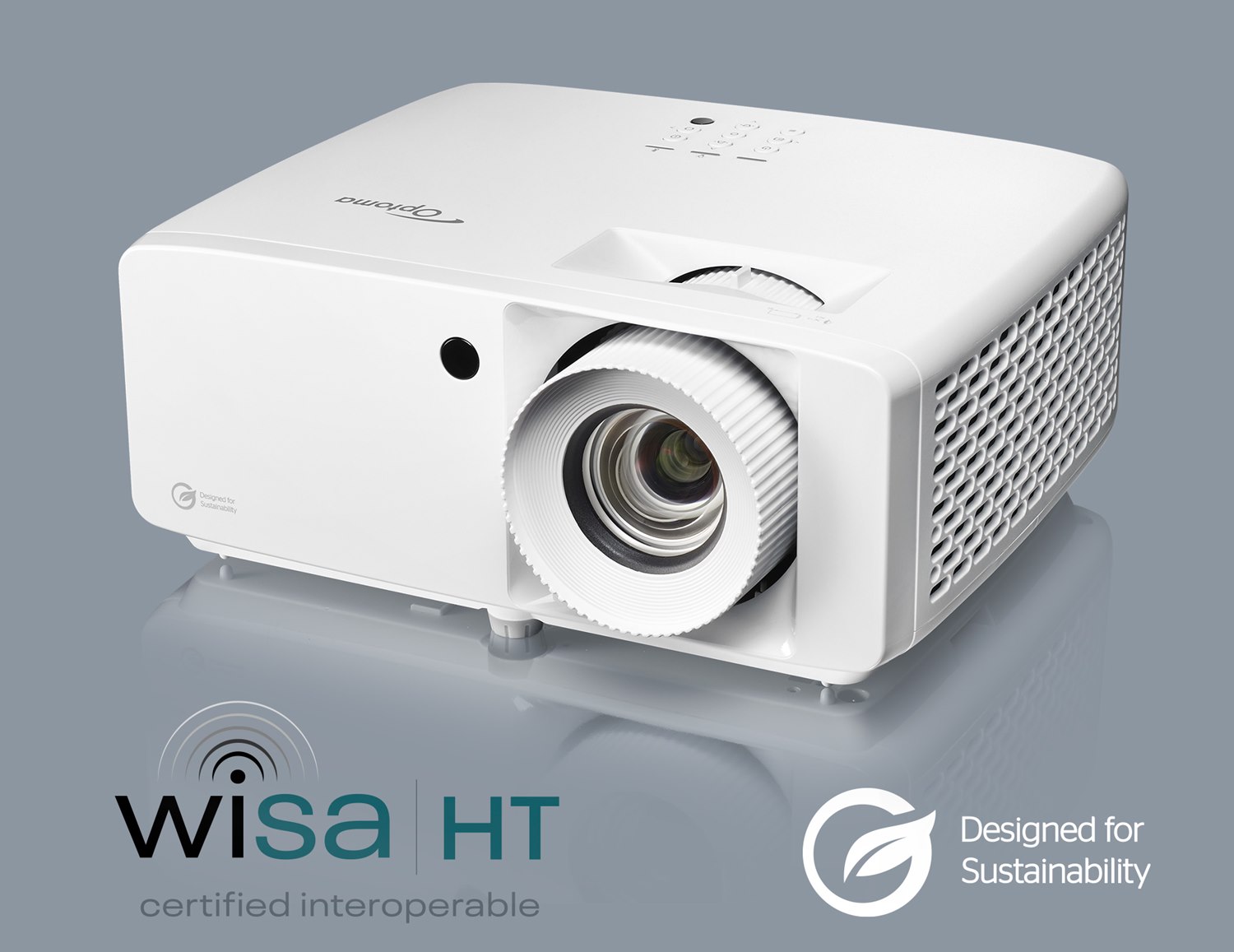

UHZ66 4K Laser Compact Projector

The UHZ66 is one of Optoma’s most compact and user-friendly 4K UHD DuraCore laser projectors. Designed for maintenance-free continuous operation, it delivers powerful image performance at 4,000 lumens with flexible installation features and extensive connectivity in a sleek and compact form factor that is up to 34% smaller than previous Optoma models.

Supporting Optoma’s commitment to sustainability, the UHZ66 reduces power consumption by up to 45% compared to Optoma’s lamp-based projectors. The energy-saving DuraCore laser technology ensures a long product life of up to 30,000 hours without the need for additional lamps. The UHZ66 is mercury-free, further reducing its carbon footprint.

An added benefit is that the UHZ66 has an external power supply for greater reliability, portability and energy efficiency.

The eco-friendly housing is made of 50% post-consumer recycled (PCR) plastic and the packaging contains up to 97% recyclable materials. In addition, the compact product and packaging size of the Optoma UHZ66 projector allows 2x more products to be transported per container, contributing to more efficient logistics, further reducing carbon emissions.


Categories: , ,

To enquire about this or any other product,
please call either Rayleigh 01268 779762
or Chelmsford 01245 265245.

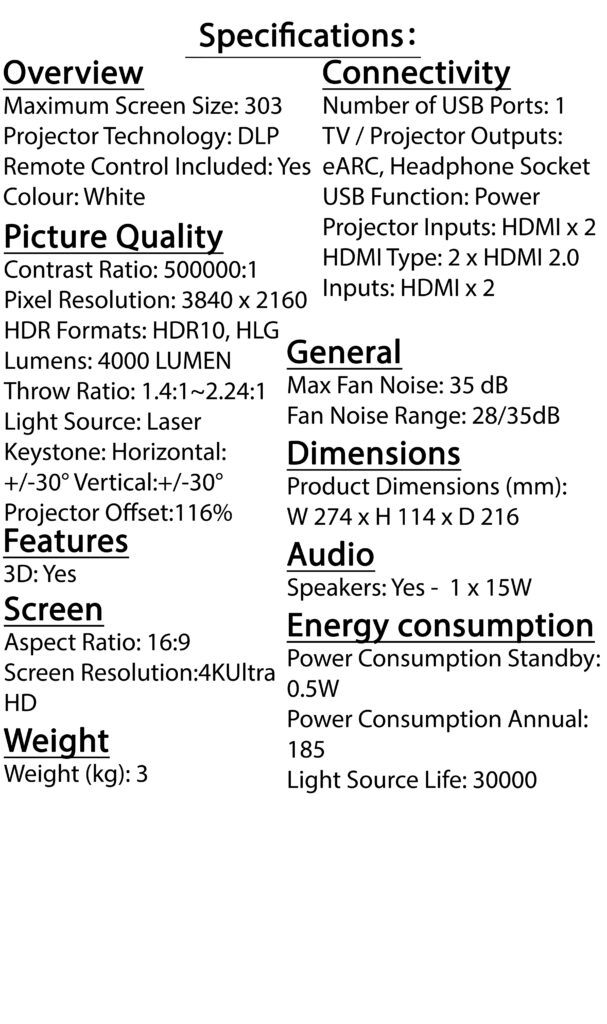

  • 4000 ANSI Lumens
  • Up to 30,000 Hours Laser Light Source Life
  • Ultra 4K HD (3840 x 2160) Native Resolution
  • HDR and HLG compatible
  • 16:9 Widescreen Format Aspect Ratio
  • 3 Kg in Weight
  • Dimensions (W x D x H): 274 x 216 x 114 mm
  • 500,000:1 Contrast Ratio
  • DLP Technology
  • DuraCore Laser Light Source
  • 1.4 – 2.24:1 Lens Throw Ratio
  • Projection Screen Size: 0.66m – 7.7m (26″ – 303″) diagonal
  • Projection Distance: 1.3m – 9.4m
  • Native offset: 116%
  • 1.6x Manual Zoom
  • Supports 1080p 240Hz at 4.4ms and 4K 60Hz at 17ms
  • 360 projection & Portrait Mode
  • IP6X certified
  • Reduced power consumption for a long life span

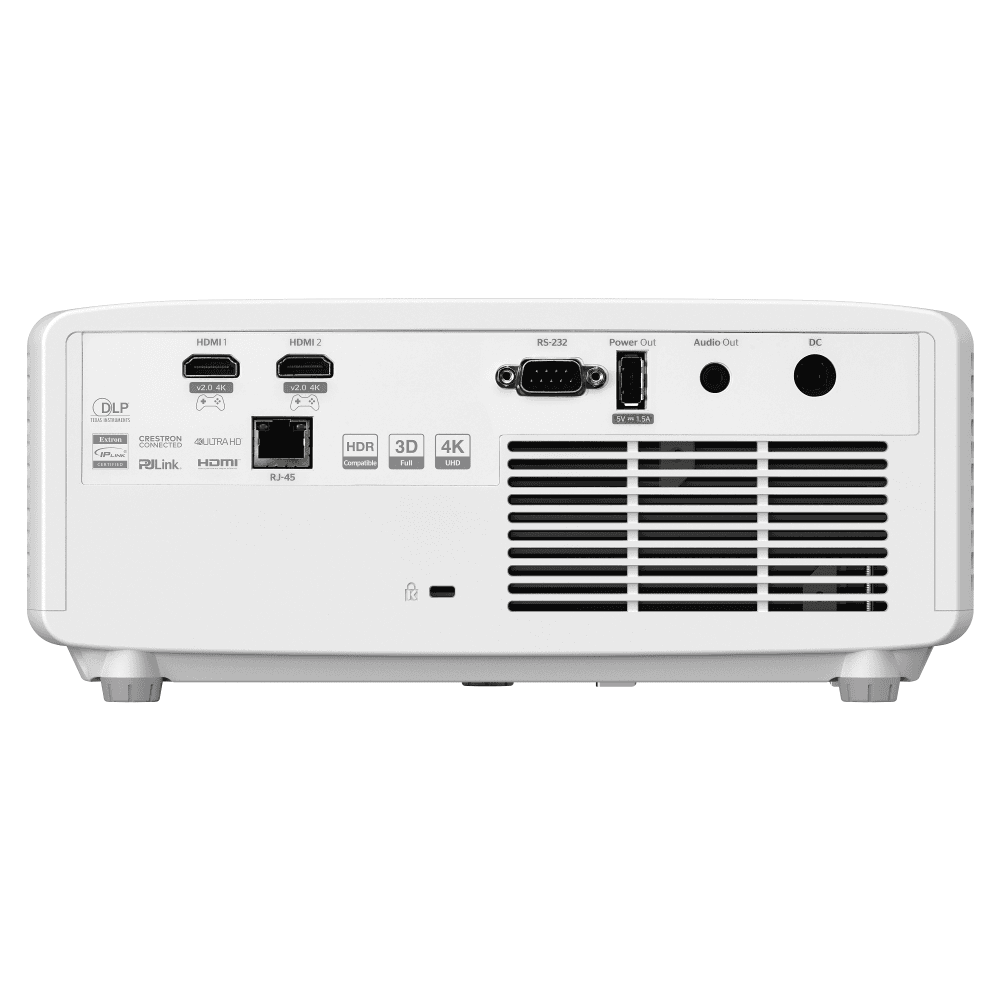

  • Crestron, Extron, AMX, PJ-Link Control
  • Built-in 1x 15W Speaker
  • Manufacturer’s 2 Year Projector Return-to-Base Warranty & 5 Year / 12000 Hours Laser Light Source Warranty
